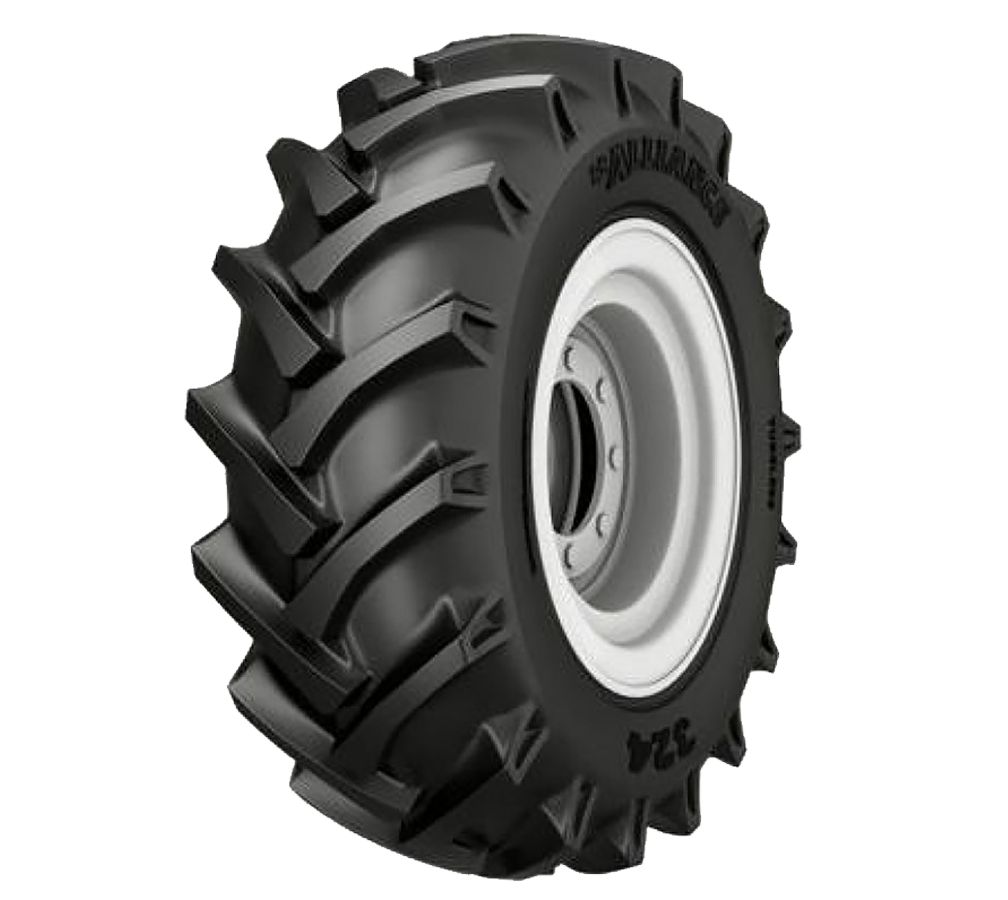

16.5/85-28 12 PR ALLIANCE 324 FARMPRO 163A6/159A8 (FR) 151A6/148A8 (DW) R-1 TT

Description

The range of Alliance 324 bias ply tyres have been designed for use on 2WD tractors, utility tractors and a range of implements used in all types of service environments. The deep R-1 lugs, angled at 45 degrees, offer exceptional traction and self-cleaning properties, suitable for use in the field and also on the road. A strong casing guarantees an extended life cycle even under difficult working conditions, as well as good power transmission and resistance to slippage.

Features

  • Range of bias-ply tractor tyres suitable for field and road applications.
  • Good traction properties in the field and reduced wear on the road.
  • Unique compound for resistance to cut growth.
  • Large range of R-1 sizes available.
  • Strong casing for increased durability and operational efficiency.

Specification

Sector
INDUSTRIAL
Application
PLANT
Range
PLANT AGRO-INDUSTRIAL OPEN CENTRE
Size
16.5/85-28
Brand
ALLIANCE
Pattern
324 FARMPRO
Load/Speed Index
163A6/159A8 (FR) 151A6/148A8 (DW)
Ply Rating
12
TT/TL
TT
Construction
BIAS
Nominal Section Width
16.5
Profile
85
Rim
28
TRA
R-1
Recommended Rim
W13
Permitted Rim
14 15
Section Width
417 mm
Overall Diameter
1423 mm
Static Load Radius
626 mm
Rolling Circumference
4130 mm
Tread Depth
39.00 mm
Max Load (KG)/Speed (KM/H) 1
4875/30 (FR) 3450/30 (DW)
Max Load (KG)/Speed (KM/H) 2
4390/40 (FR) 3110/40 (DW)
Inflation Pressure Bar
2.80
ECE 106
Yes
Warranty
7 YEARS
